4 Axis Education Workstation Academic Robot Arm For Training Institute
Product description:
This education stage is dominated by four axis industrial robot system, handling module, stacking module, etc. It can help users to complete the following application: the basic operation of 4 degrees of freedom robot, study the robot coordinate system, the basic point of robot, straight and curve track control, by stacking operation, strengthen the teaching skill training for robots point. It can be widely used in training institutions, universities, laboratories and so on.
Feature
1. Easy learning and operating.
2. Competitive price and short capital recovery cycle.
3. Working radius 540mm
4. Wide range of applications.
5. Easily combined with vision system
6. Tablet control.
7. Offline loop demonstration
Robot parameter
| Model | HK5404 |
| Maximum working radius | 540mm |
| Number of axis | 4 Axis |
| Installation | Floor / desktop |
| N.W/ GW | 13kg/20kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Load | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V |
| External communication | WIFI/Ethernet |
| Application | Picking placing and sorting |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Main components of the system (single set)
1. Robot System
2. Handling module
3. Visual Module
4. Palletizing modules
5. Gobang module

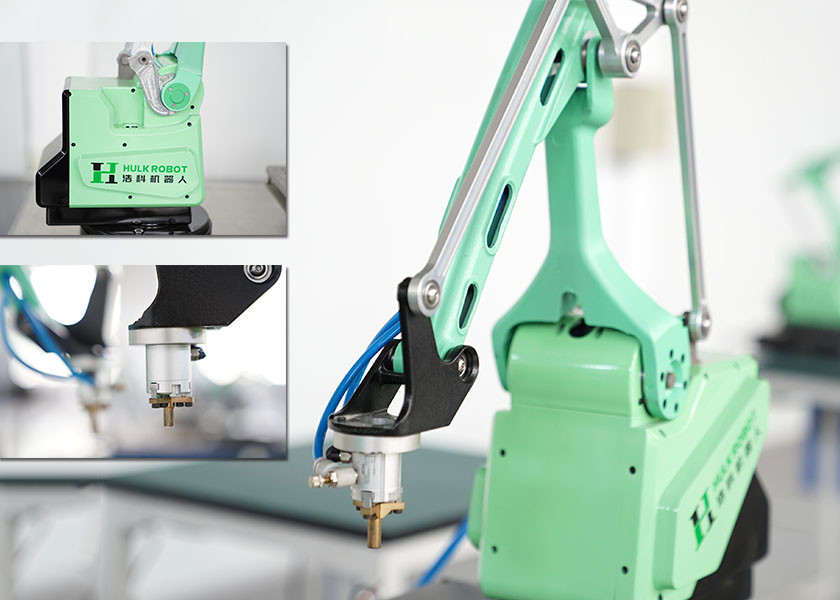

Detailed images
